Creating Solids

Many 3D solids can be created by extruding, rotating or lofting 2D profiles. Other basic solids such as cylinders, boxes, cones or pyramids can be defined by entering dimensions. Nearly all mechanical parts contain basic solids, which can be joined and/or trimmed. Combining and subtracting solids are called Boolean operations, and resulting solids are called “Boolean Trees.” VariCAD provides tools to add solids and to use one solid to cut another, either keeping or deleting the cutting solid. Commonly-used Boolean operations such as drilling holes, creating grooves, and cutting by a large box are also available. Blending functions are provided for rounding and chamfering solid edges.


Following two chapters describe how to create basic 3D solids, which can be later combined into Boolean trees.


Sketching of a 2D Solid Profile

When using a 3D solid creation method that requires a 2D profile (or multiple profiles in multiple planes) as an input, the profile is created in sketching plane in 3D space. Optionally, you may select a profile in 2D area; however, such method is limited only for solids created by single profile in one plane. In sketching plane, the profile is created by standard 2D drawing features. See Sketching - 2D Drawing in 3D, Drawing Methods. If a solid shape is edited, the profile is always modified in sketching plane.


Sketching Plane Definition

Before you start sketching of a profile, you must define the sketching plane. It may be selected as:

  • As an existing plane at a solid
  • Plane created by XY, YZ or XZ axes of a solid
  • Plane defined by 3 points
  • Plane created by XY, YZ or XZ axes of 3D space

An existing plane at a solid can be conveniently selected, if you press and hold Ctrl + Shift and move cursor over a planar solid’s surface. Plane’s outlines are highlighted and the plane is selected by left click. Outlines are pre-defined as an existing profiles 2D objects.


Sketching (2D Drawing in planes in 3D Space) – DRP, Alt + S

To start sketching, click the spatial axes in lower left corner of VariCAD drawing window. Select sketching plane definition from menu.


If you want to start sketching at an existing plane (planar surface of a solid), press and hold Ctrl + Shift and move cursor over the plane. Left-click when plane’s outline is highlighted.

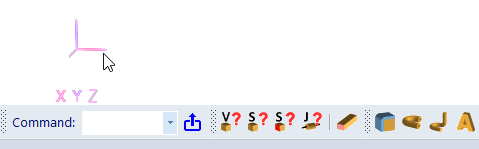

Detection of spatial axes, menu is displayed after click

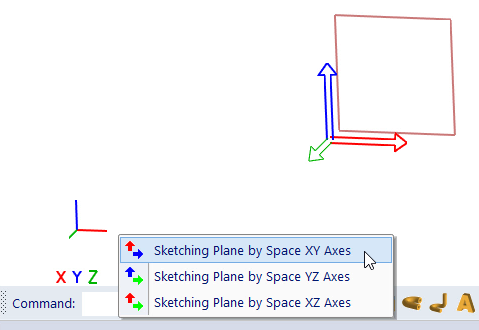

Selection of axes. This pop-up menu is displayed if 3D space is empty. Sketching plane corresponding to menu item is highlighted. Plane axes are displayed as axes of sketching plane, not as world axes.

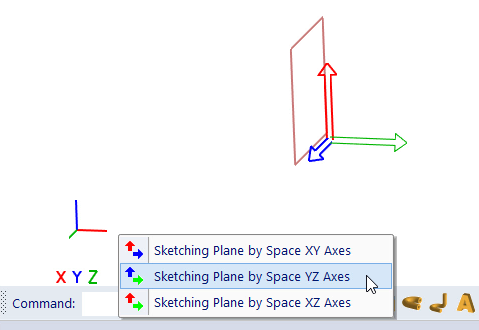

Next option, selection from world axes.

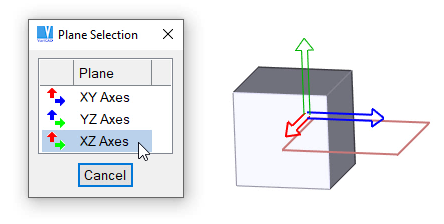

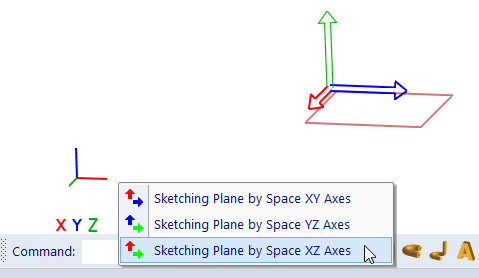

Final option, selection from world axes.

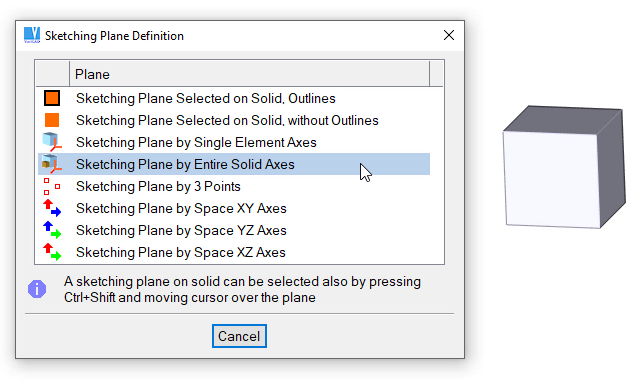

This dialog panel is displayed, if 3D space contains solids. Sketching plane can be selected also at solid planar surfaces or solid axes.


Selection of axes. Sketching plane corresponding to menu item is highlighted. Plane axes are displayed as axes of sketching plane, not as solid axes.

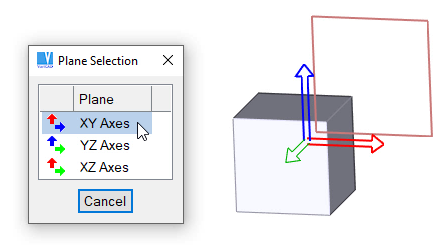

Next option, selection from solid axes.

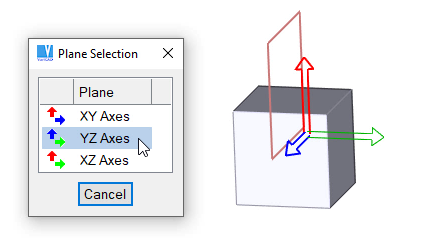

Final option, selection from solid axes.


If you start creation of a solid defined by profiles extrusion, rotation or lofting, a pop-up menu appears and you can select sketching plane. If you select an existing solid for editing, the sketching plane is defined automatically according to solid location.


Sketching Environment, Finish Sketching

After sketching plane is selected or a solid is selected for profile editing, VariCAD switches environment into sketching mode. Toolbars are changed. You can use standard 2D drawing commands, with certain limitations – see Sketching - 2D Drawing in 3D, Drawing Methods. A solid can be created from multiple profiles in multiple sketching planes. Undo or Redo of 2D commands is available for each sketching plane separately.


Sketching can be finished, if you:

  • Select “Profiles sketching finish” from toolbar or pop-up menu after right-click an empty area
  • Perform Undo (Ctrl + Z) at a state where no prior 2D commands are available - at the beginning of sketching
  • Click Close icon at menu bar, or call command closing the current document.

Commands specific to sketching are available from sketching toolbar or from pop-up menu, which appears if you right-click an empty location.

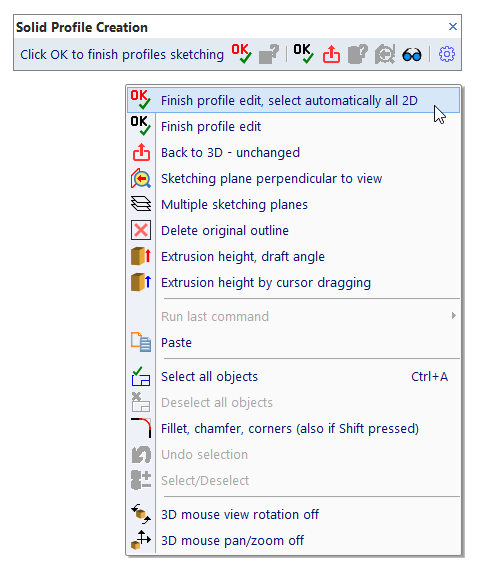

Toolbar and pop-up menu, solid profile creation

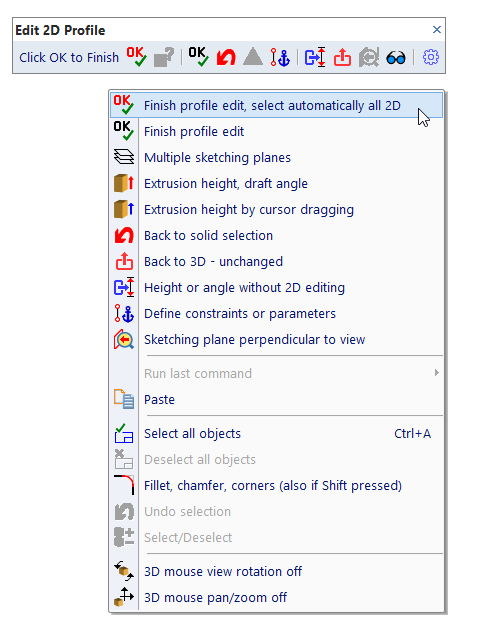

Toolbar and pop-up menu, solid profile editing


Sketching of Profile of New Solid

If you want to create a new solid and sketching has already started, you can create 2D objects of a new solid’s profile. You have to select a method of solid creation. You can do this whenever during sketching, or at last when you finish the profile. According to creation method, you must also define solid’s extrusion height or rotation angle, draft angle etc. Again, such values may be defined during sketching, or at last at the end of sketching.


To see how the new solid looks like, extrusion height or rotation angle is predefined. You must define the final value whenever during sketching.


Available methods of solid creation from 2D profile or profiles:

  • Full rotation
  • Partial rotation
  • Extrusion
  • Sweeping along defined path
  • Helix (extrusion combined with rotation)
  • Lofting, including lofting of multiple profiles or lofting from rectangle to circle
  • Lofting combined with rotation

Displaying of Created or Edited Solids

Created or edited solid is displayed as a transparent object. By default, the shape is permanently updated after each change of the profile’s shape. If a solid can be created from all 2D profile objects, it is displayed in green color. If the created or edited profile contains an error (like intersections of lines or gaps between lines’ endpoints), the solid is displayed in red color at the last correct position.


In case of erroneous profile, or whenever a solid cannot be rebuilt, you can click a corresponding icon and display what caused the problem. On the other side, if the profile is correct and the solid can be created, you can finish profile creation and skip selection of profile’s segments – all 2D objects are selected automatically.

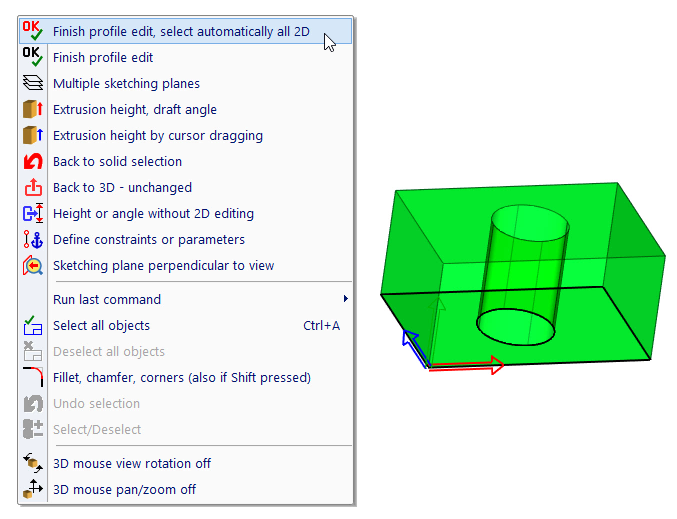

Example of correct profile. All 2D objects can be selected automatically and then the solid is created.

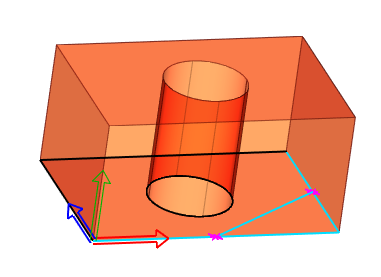

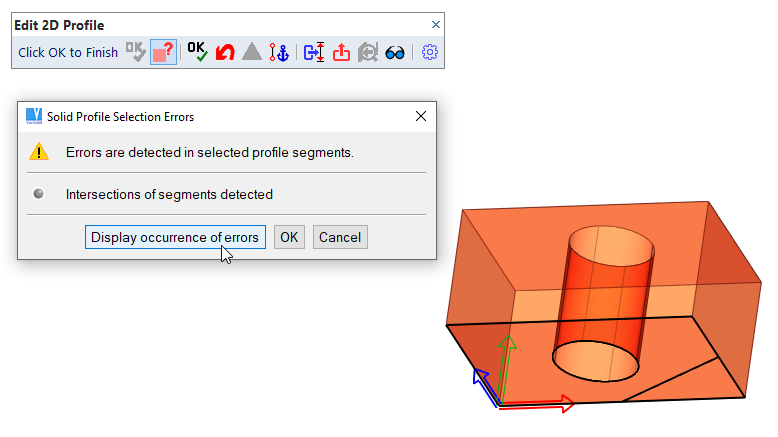

Example of incorrect profile. Click the button to display occurrence of error.


Errors in contour are displayed.


It is possible to manage how the edited solids are displayed. Wire-framed display can be used instead of transparency, or a solid may not be updated permanently.

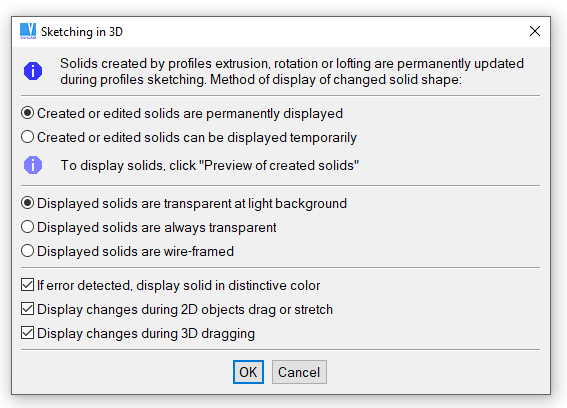

Settings of display of 2D profile sketching


Multiple Sketching Planes

A solid may be created from multiple profiles. Then, each profile is created at a separate sketching plane. To select features related to multiple sketching planes, click XYZ axes of the current sketching plane and select action from menu.


In case of multiple sketching planes, only one plane is active. 2D objects are created or edited in active plane. Sketching plane is activated, if you click its contours.


First sketching plane is so called a base plane. This plane becomes active automatically, whenever the solid is edited. XYZ axes of the base plane are axes of the created or edited solid. If planes are copied or created as new planes, all planes must be above or under the base plane.


Create, Copy or Transform Drawing Planes

This command manages sketching planes. It may be especially useful if a sketching plane does not contain any 2D objects. Because then, you cannot click its contours.


Following features are available at pop-up menu, after you click contours of inactive sketching plane or XYZ axes of active sketching plane:

Activate a sketching plane.
Copy a sketching plane together with all 2D objects. A new sketching plane is transformed and located the same way as a new or transformed solid.
Copy a sketching plane without 2D objects.
Delete a sketching plane. Base sketching plane cannot be deleted.
Transform a sketching plane. If transformation is selected for a base plane, the rest of sketching planes and consequently, entire solid is transformed. Otherwise, the transformation changes position of the sketching plane relative to other planes.
Defines distance from the base plane. The selected plane is then parallel with the base plane and its coordinate center is exactly above the center of the base plane. Distance can be defined also as a mathematic expression containing parameters.
Defines angle from the base plane. The selected plane is then rotated around X axis and its coordinate center is at a location of the base plane center. Angle can be defined also as a mathematic expression containing parameters. Angle between planes must not be greater than 60 degrees.

When a plane with 2D objects is moved or copied, created solid is recalculated permanently and if cannot be rebuilt, it is displayed in red color at the last correct position. Planes are sorted automatically, if you move a plane.

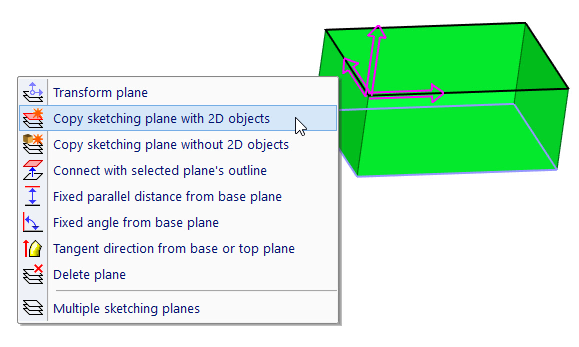

Sketching plane’s options, copying is selected

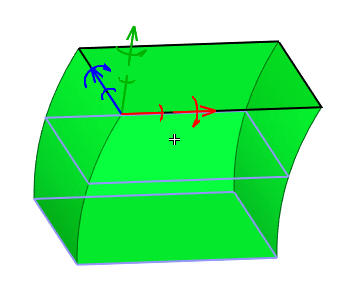

Sketching plane is copied together with 2D objects


Copying 2D Objects among Sketching Planes

To copy 2D objects among the rest of sketching planes, select the objects. Then, right-click and from related sub-menu, select method of copying:

Copy and add to rest of drawing planes
Copy and replace objects at each drawing plane. This feature is useful if all planes contain the same profile and if you need to change profile’s shape.

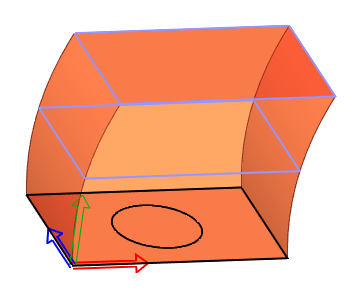

A circle is created at base plane. Contours in other sketching planes do not correspond – a solid cannot be created.

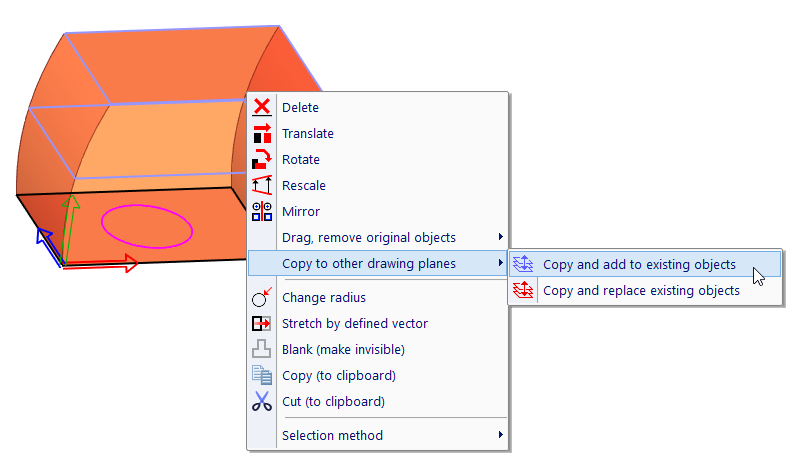

Copying 2D objects among sketching planes, selection of 2D objects.

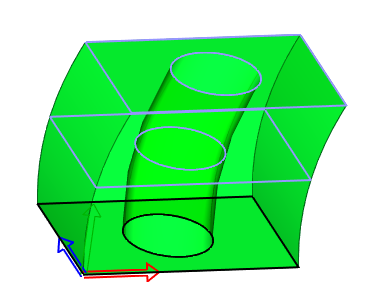

Solid was created after the circle was copied into all planes.


Generally, a set of 2D objects can be whenever and wherever copied, using Copy and Paste (Ctrl + C, Ctrl + V).


Common Sketching Features

These features can be selected from toolbar, or if you right-click an empty location.

Finish profile edit, select automatically all 2D objects. This command finishes edit. If you already defined values like extrusion height or rotation angle, entering of them is skipped. If you already transformed the base sketching plane or if a plane was selected as a planar surface of a solid, transformation of new solid is also skipped.
Display errors in created profiles. This option is active if a solid cannot be rebuilt. Otherwise, it is inactive and active is the previous option.
Quit sketching without any changes of edited solid, or without creation of a new solid.
If active, tilt of current sketching plane is too large. By other words, you would draw 2D objects to plane almost parallel or parallel with angle of view. Although you may continue, it is better to rotate view properly.
Preview of created solid – can be used only, if permanent changes of a created solid are turned off.
Settings of display of created solid.

Finish profile edit. This command finishes edit. It is not available for solids created in multiple sketching planes. In following steps, you must select profile’s segments by cursor or by selection window. Then, define solid location, if a new solid is created.
Returns back to selection of solid to be edited. It is available only for editing of an existing solid.
If active, edited object is affected by constraints. Any change may cause additional transformations of other solids.
Define parameters and constraints within the current profile. This is available only for editing. If selected, sketching mode is finished and you can define constraints and parameters among profile vertexes.
Skip profile editing and set extrusion height or rotation angle of edited solid.

Additional Sketching Features

These options are available according to specific situations. They are available from pop-up menu after clicking an empty area. Dimensions of cutting tools can be selected from pop-up menu, if you click sketching plane axes.

Delete original outlines. This option can be conveniently used, if you select the sketching plane at a solid (by holding Ctrl + Shift and moving cursor over the plane). Then, the sketching plane contains 2D objects corresponding to detected plane’s outlines. You may use these objects, but if you need them only for measurement or as auxiliary objects, you can delete them at one step, by this option.
Cutting tool height and location. This option can be used, if you create a tool for cutting of a selected solid. It defines height of contours extrusion and location of sketching plane automatically, according to solid dimensions.
Section tool height and location. A similar option, used for sketching of contours of a section tool (section planes geometry).

The example of working with these options is at: Cut by an Extruded Solid.


Closed Rotation of Multiple Profiles

You can create solids defined by multiple sections rotated around X axis. First, create a profile you want to rotate. Right-click empty location and select a method of solid creation.

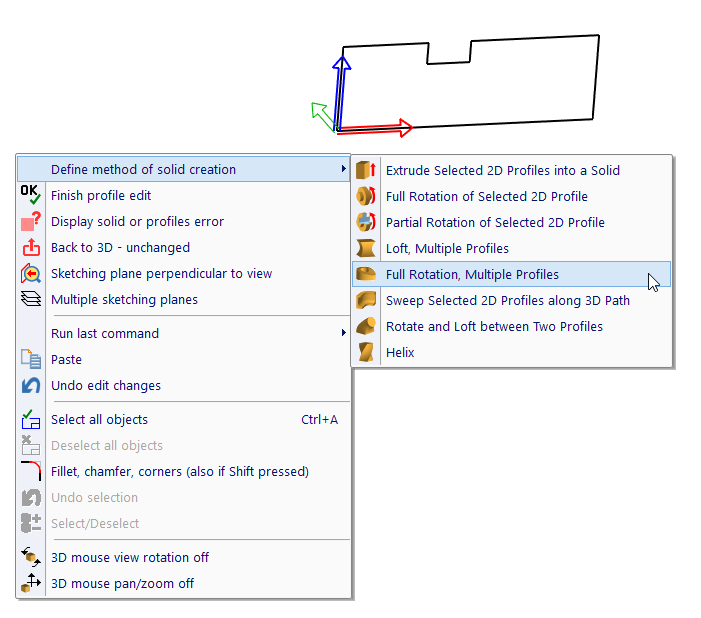

Selecting full rotation of multiple profiles


Then, select number of planes. Minimum are 6, recommended are at least 8 planes.

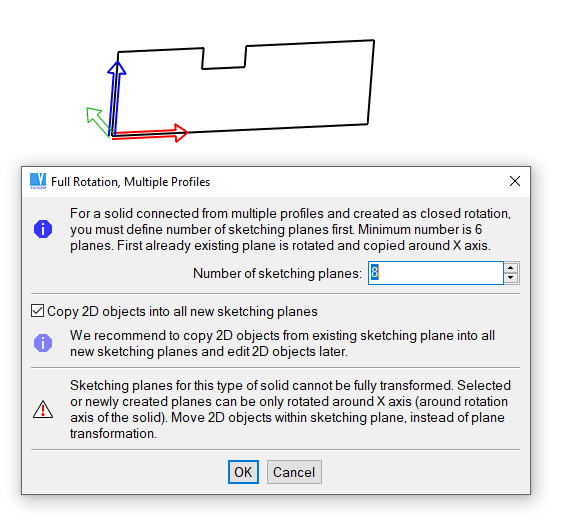

Full rotation of multiple profiles properties


A solid is created. Now, you can switch among sketching planes and modify each individual profile.


First solid created from rotated profiles

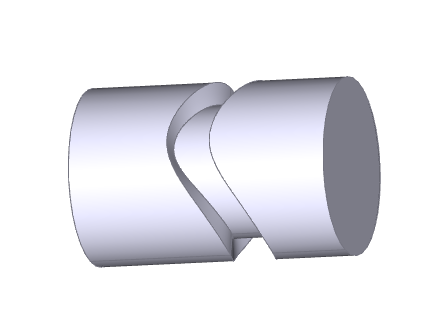

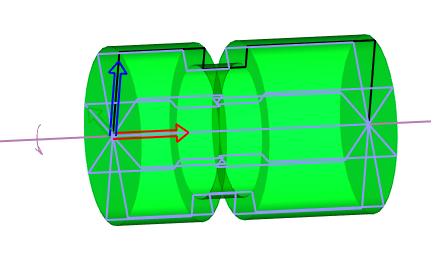

Groove location was shifted for each section individually


Convergence of Lofted Profiles into One Point

If the last sketching plane, listed in table as the Top Plane, contains only one 2D point instead of closed contours, all patches converge into this point. See examples below.


Tangent Direction of Lofting

Tangent direction can be selected for lofting from base plane or top plane. This causes the patches edges at base or top plane have normals perpendicular to plane normal. Tangent direction can be selected independently for both base and top plane.


If the top plane contains only one point and patches converge into this point, then normal of patches edges at the point location is parallel to normal of the top plane. Following examples show definition of tangent direction. Here, a rectangle is connected with a single point at the top sketching plane.

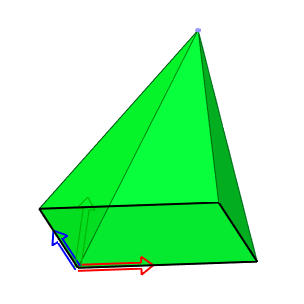

A rectangle lofted into a single point

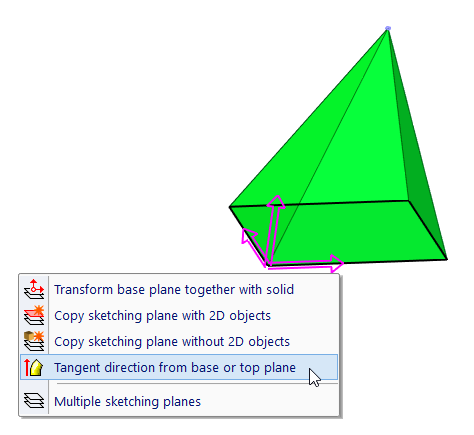

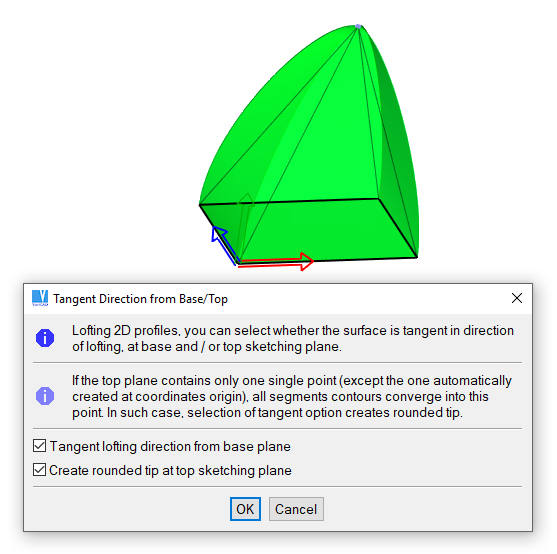

Selection of tangent direction of lofting

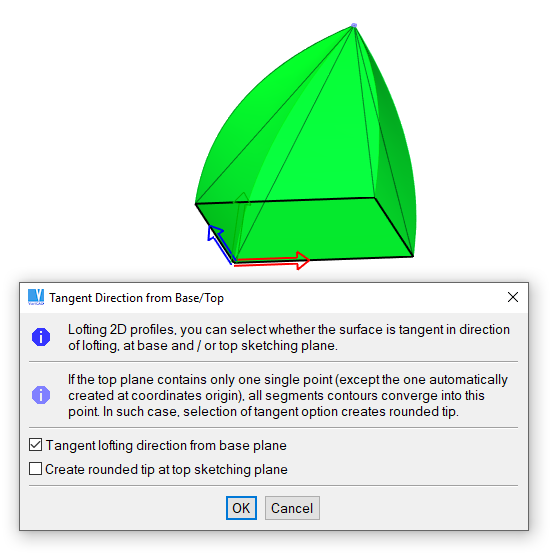

Tangent direction selected for base plane


Tangent direction selected for both planes

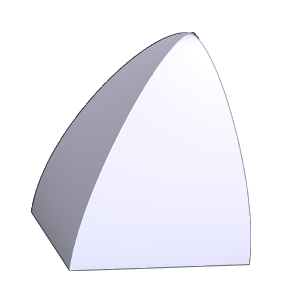

The final solid


Features Related to Solid Creation Method

These features can be selected from pop-up menu, if you click XYZ axes of the active sketching plane, or if you right-click an empty location. These features are specific for selected solid creation method (or for method the edited solid is created according to).

Connects the active plane with a plane selected at a solid. This is another method of sketching plane creation, used for multiple planes lofting. This feature is also available as a separate command.
Redefine rotation axis. Rotation axis is the X axis of solid axes and simultaneously, base sketching plane axes. If you need to change the solid profile relative to rotation axis, you can move 2D objects. Sometimes, it is necessary to redefine the axis in space. To do so, define first and second point of axis. These points are defined in active sketching plane.
Change direction of the rotation axis. The profile of rotation solids rotates around X axis counterclockwise. It means that if the X axis is directed toward you, the rotation is counterclockwise. This command reverses direction of axis and consequently, direction of profile rotation.
Move all 2D objects to axes origin. Center of all 2D objects is moved into origin of solid axes. This feature is important for creation of helix. Here, the radius of helix is measured from axes origin. Consequently, it is necessary that the profile has its center equal to coordinates center.

Manual Selection of Profile’s 2D Objects

Profiles are created by 2D lines, circles, arc segments or NURBS 2D curves. There are two methods of profile detection:

Detect Profile Segments (or press E) - define the profile segment by segment
Detect Profile (or press F) - select one segment and the entire chained profile is detected

Apart of automatic detection of profile’s segments, you can select objects with standard methods of 2D selection – see Selecting 2D Objects. Press Enter or right-click to finish the profile definition.


Profiles used for 3D solids must be continuous. If multiple profiles are used, they cannot intersect; one profile must completely encompass the other profiles. Profiles used in a Revolve operation cannot intersect the revolving axis. Lines, circles or circular arcs can be selected for all type of solid creations. If a profile contains gaps or intersections of segments, you can optionally highlight a location of the error.


Solid Insertion Point

Solid insertion point is equal to center of XYZ axes of base sketching plane. For solids created from a single profile, the base plane is the only sketching plane. During profile creation or editing, you can transform the sketching plane. Together with the plane, the entire solid is transformed, too. If profiles are created in sketching plane in 3D, the solid insertion point is defined automatically.

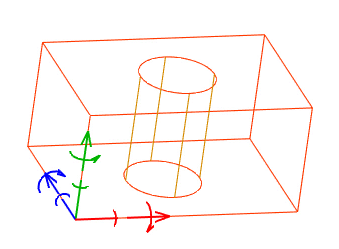

Axes of sketching plane


Transformation axes of the solid


Transformation axes are identical with axes of the base sketching plane, until you define their new location – an XYZ offset from the original location.


Solid Insertion Point for Profiles Selected in 2D Mode

Prior to selecting a 2D profile, it is necessary to enter values like extrusion height or rotation angle. Along with these parameters, you can also identify the solid insertion point and set the X axis direction. If you do not select an insertion point, the point at lower left point of profile will be used. If you do not set the X axis, the default 2D X axis will be used. The insertion point and X axis direction are used when inserting the solid into 3D space.


Run “CFG” command to select whether the insertion point and X axis direction is defined automatically, if a profile is selected in 2D mode.
